PROTART ESE LIGHTNING PROTECTION SYSTEM

Extending into the spectrum of lightning arresters, we bring forth an impeccable quality of E.S.E. lightning arrester for protecting structures such as high rise buildings from damage by intercepting flashes of lightning. These arresters transmit the lightning current to the ground, which in turn ensure the total protection of the building. Manufactured by implementing latest technology, these arresters have the capability of withstanding toughest weather conditions.

PROTART was founded in 2008 with a purpose to serve the needs and wants of the clients looking for quality and cost effective solutions in the global market. Since the day PROTART was founded, it kept growing in the areas served and widened product ranges. With its strong R&D, manufacturing experience and solid background, PROTART progressed in the international lightning protection market with speed and agility.

PROTART products are fully certified in NFC 17.102 standard from METU (Middle Eastern Technical University) high voltage laboratory. We also possess ISO 9001:2008 quality assurance certificate and ISO 10002:2004 customer satisfaction certificate. Our staff has also been trained in ISO 14001:2004 environment management and OHSAS 08001:2007 work health and safety standards.

Working Principle

The basic purpose of the ESE Lightning Arrester is to produce ionization directed at the cloud so that the electrical charge in the lightning strike can be channeled from the very beginning. It consists of emitting an ascending electrical unloading to influence the effect of the descendant tracer.

Advantages

  • Implemented with latest technology
  • Non-electronic type
  • 100% effective discharge capacity
  • Carries lightning current without resistance
  • In compliance with the industrial standards
  • Technical qualities remain unaffected after each strike
  • No external power required
  • Low maintenance cost
  • Easy to install
  • Resistant to both corrosion as well as high temperature
  • Can withstand adverse weather conditions

Protart-30 ESE Lightning Arrestor

PRO 30 ESE lightning conductor is manufactured from high quality stainless steel which makes it durable against the toughest weather conditions.

Technical Specifications

Early Streamer Emission terminal releases positive ions in to the atmosphere which attracts the lightning emissions

  • Stainless steel with superior quality to avoid corrosion
  • No battery or external energy required
  • Suitable for any weather condition
Product Code Material Δ T: NFC-17 102 Test Results Packing Dimensions(Cms) Weight (kg)
PRO 30 Stainless Steel Δ T: 57 μs 37 x 22 x 12 2,10

Protart-45 ESE Lightning Arrestor

PROTART 45 ESE lightning conductor is manufactured from high quality stainless steel which makes it durable against the toughest weather conditions.

Technical Specifications

Early Streamer Emission terminal releases positive ions in to the atmosphere which attracts the lightning emissions.

  • Stainless steel with superior quality to avoid corrosion
  • No battery or external energy required
  • Suitable for any weather condition
Product Code Material Δ T: NFC-17 102 Test Results Packing Dimensions(Cms) Weight (kg)
P 45 Stainless Steel Δ T: 57 μs 37 x 22 x 12 1,98

Protart-60 ESE Lightning Arrestor

PROTART 60 ESE lightning conductor is manufactured from high quality stainless steel which makes it durable against the toughest weather conditions.

Technical Specifications

Early Streamer Emission terminal releases positive ions in to the atmosphere which attracts the lightning emissions.

  • Stainless steel with superior quality to avoid corrosion
  • No battery or external energy required
  • Suitable for any weather condition
Product Code Material Δ T: NFC-17 102 Test Results Packing Dimensions(Cms) Weight (kg)
P 60 Stainless Steel Δ T: 72 μs 37 x 22 x 12 2,32

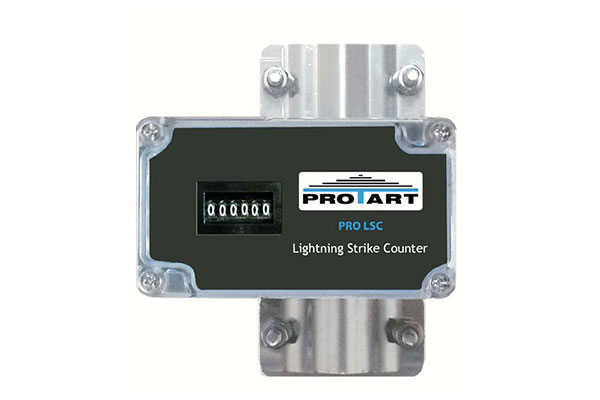

Protart- Lightning Strike Counter - Analog

Technical Specifications

  • Simple assembly
  • IP68 rated enclosure
  • 6 digit analog counter (Non-Resettable)
  • Test function (external battery required)
  • Detection currents from 1 to 100 kA
  • It is not subject to an external power supply
Product Code Packing Dimensions(Cms) Rated Weight (kg)
PRO LSC-A 11.5x6.5x5.5 IP68 0.460

Protart- Lightning Strike Counter - Digital

Technical Specifications

  • Simple assembly
  • IP68 rated enclosure
  • 6 digit analog counter (Non-Resettable)
  • Test function (external battery required)
  • Detection currents from 1 to 100 kA
  • It is not subject to an external power supply
Product Code Packing Dimensions(Cms) Rated Weight (kg)
PRO LSC-D 11.5x6.5x5.5 IP65 0.460

Protart- Tester

With PRO TESTER, you are able to determine if there is a short circuit or a fault in the ion generator immediately by simply connecting the cable to the ESE conductor and pressing the button on the testing device. When the tester’s button is turned on, the red LED indicates the open circuit fault, the yellow LED indicates the short circuit fault and the green LED indicates full functionality.

Technical Specifications

  • This product requires a 9V battery
Product Code Weight (kg)
PRO Tester 0.152
